Product description

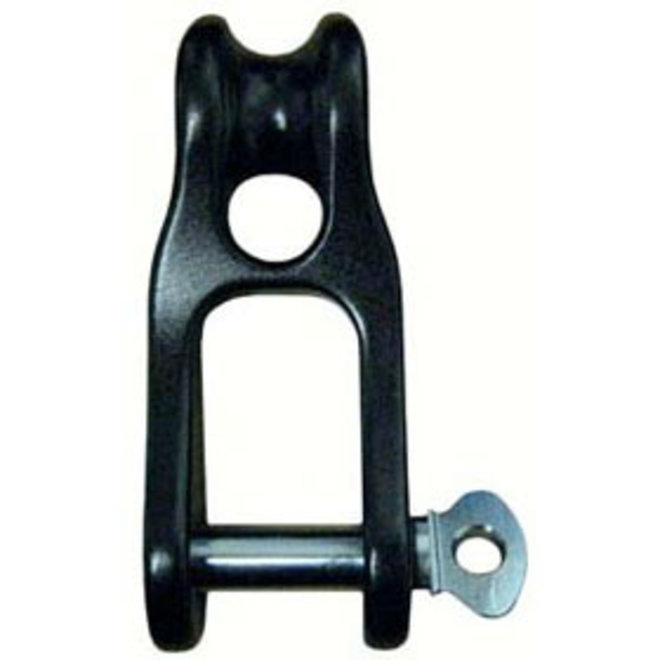

Tylaska H5 Fixed Thimble Halyard Shackle

Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.

Specifications:

• Working Load: 1,136 kg
• Break Strength: 2,273 kg
• Line Size: 8 mm
• Weight: 36.9.8 g

Dimensions:

• Overall Length: 65.3 mm
• Overall Width: 25.4 mm
• Ear Thickness: 4.6 mm
• Overall Throat Length: 35.6 mm
• Working Throat Length: 23.1 mm
• Inside Throat Width: 16.1 mm
• Thimble Groove Width: 9.5 mm
• Overall Ear Height: 19.1 mm
• Overall Thimble Height: 19.1 mm
• Minimum Pin Diameter: 6.6 mm
