Product description

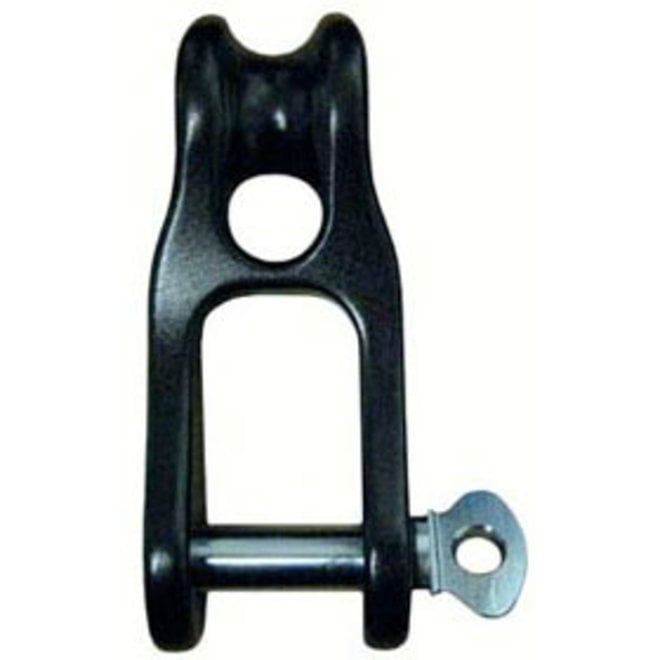

Tylaska H8 Fixed Thimble Halyard Shackle

Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.

Specifications:

• Working Load: 1,818 kg
• Break Strength: 3,636 kg
• Line Size: 10-12 mm
• Weight: 87.7 g

Dimensions:

• Overall Length: 80 mm
• Overall Width: 33.4 mm
• Ear Thickness: 7.1 mm
• Overall Throat Length: 38.1 mm
• Working Throat Length: 21.6 mm
• Inside Throat Width: 19.3 mm
• Thimble Groove Width: 14.2 mm
• Overall Ear Height: 25.4 mm
• Overall Thimble Height: 26.9 mm
• Minimum Pin Diameter: 8.1 mm
