Product description

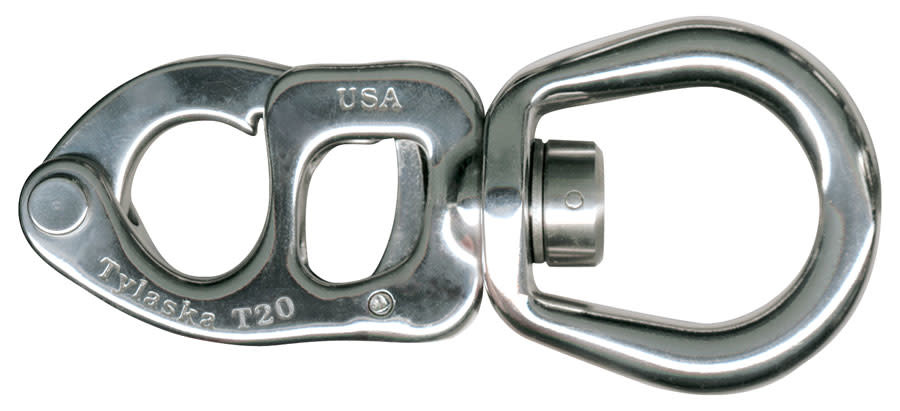

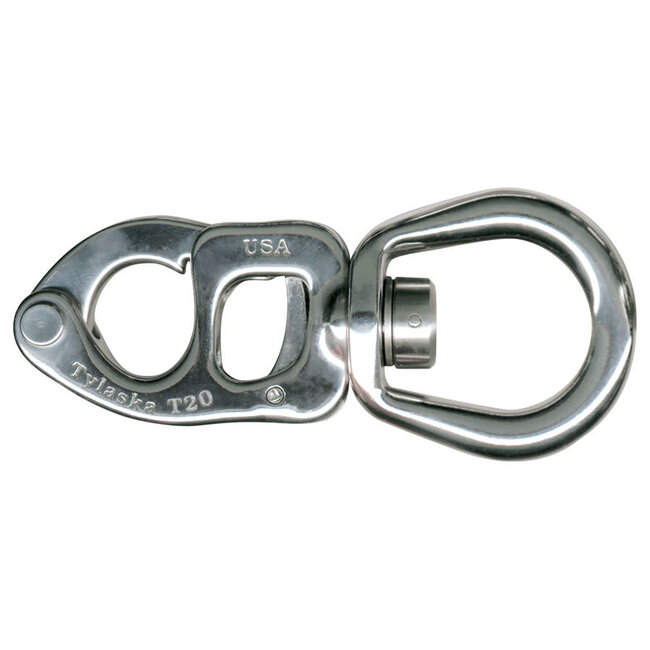

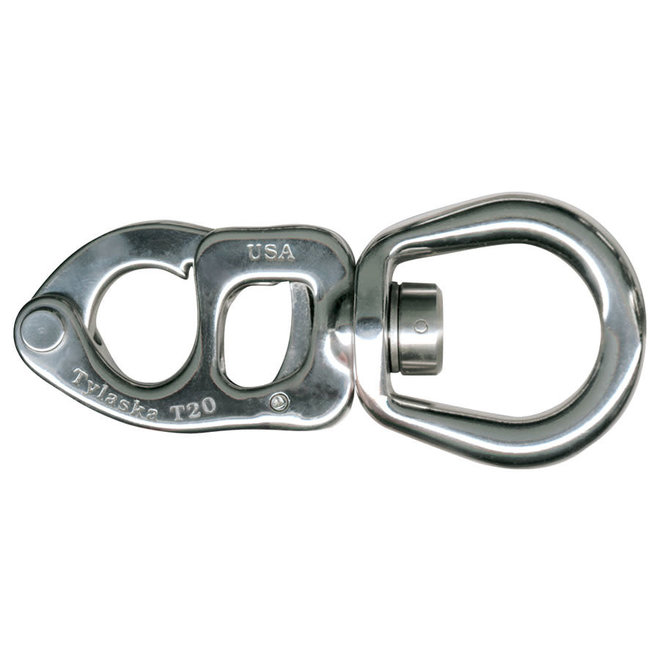

Tylaska T20 Snap Shackle Large Bail
The T20 is a larger shackle designed for mid to large sized boats. They are popular on the America's Cup racing circuit. The T-20 has a breaking strength of 20,000 lbs. Standard bail configurations weigh only 11.9 oz. Ideal for 40 to 70 foot sailboats.
Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
Specifications:
- Snap Eye Width: 24.6 mm
- Snap Eye Length: 23.8 mm
- Bail Inside Length: 34.9 mm
- Bail Inside Width: 38.1 mm
- Overall Length: 141.3 mm
- Thickness: 14.5 mm
- Weight: 406 g
- Working Load: 4,545 kg
- Break Strength: 9,091 kg
- Recommended Boat Size: 40-70'
