Product description

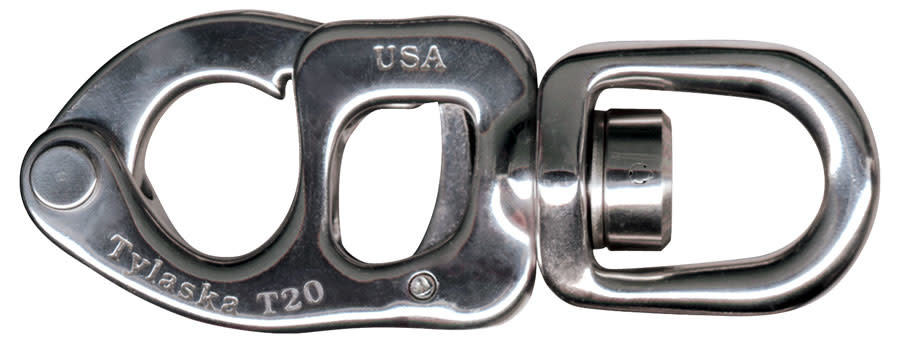

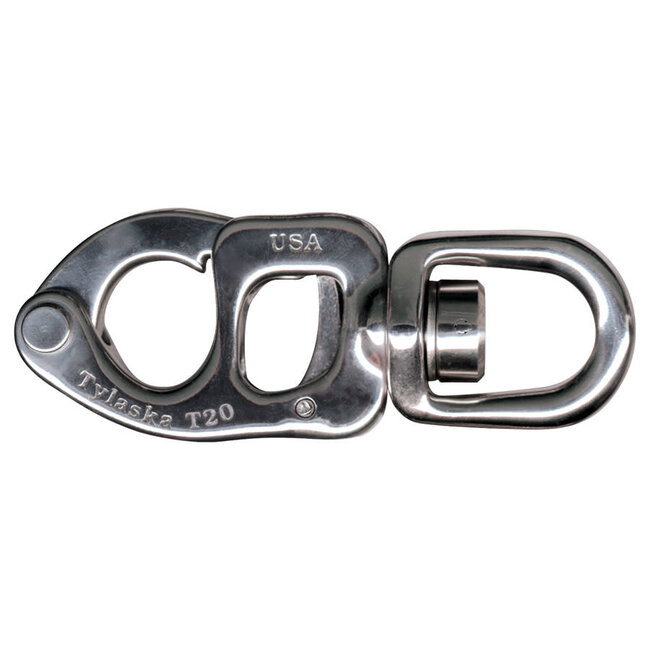

Tylaska T20 Snap Shackle Standard Bail
The T20 is a larger shackle designed for mid to large sized boats. They are popular on the America's Cup racing circuit. The T-20 has a breaking strength of 20,000 lbs. Standard bail configurations weigh only 11.9 oz. Ideal for 40 to 70 foot sailboats.
Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Specifications:
- Snap Eye Width: 24.6 mm
- Snap Eye Length: 23.8 mm
- Bail Inside Length: 23.8 mm
- Bail Inside Width: 24.6 mm
- Overall Length: 127 mm
- Thickness: 14.5 mm
- Weight: 338 g
- Working Load: 4,545 kg
- Break Strength: 9,091 kg
- Recommended Boat Size: 40-70'
Reviews
Recently Viewed
Tylaska

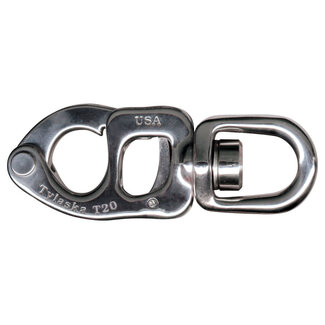

Tylaska Shackle T20 Std Bail BL 20000 lb
