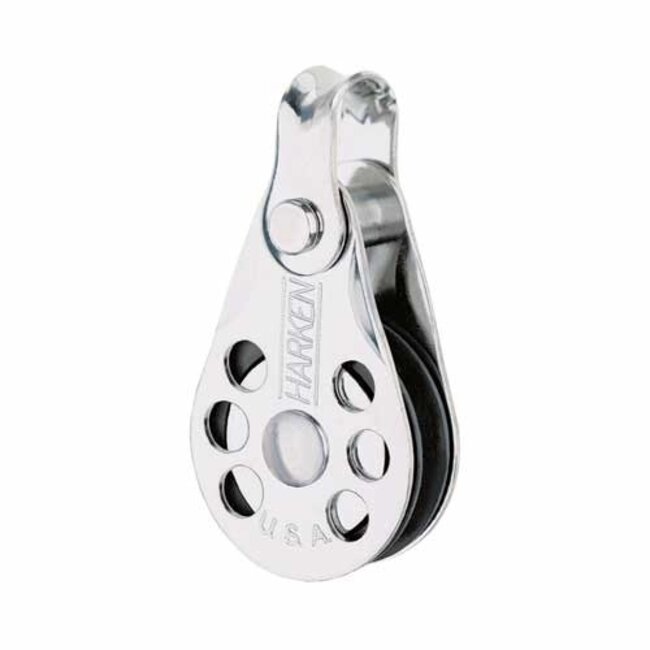

Wire High-Strength Blocks

Lightweight, low-friction wire blocks carry wire halyards and high-strength control lines on boats of all sizes.

High-load composite bearings carry axial loads. Hard Lube-anodized with PTFE impregnation sheave for strength and corrosion resistance.

25 mm (1.00 in) wire blocks use low-friction thrust washers. 38 mm (1.50 in) and 51 mm (2.00 in) wire blocks feature sideload balls between the sheave and the sideplate to minimize friction from unfair leads.

Specifications:

• Sheave Ø 51 mm | 2 in
• Weight 149 g | 5.25 oz
• Shackle pin Ø 8 mm | 5/16 in
• Maximum wire Ø 5 mm | 3/16 in
• Maximum line Ø 6 mm | 1/4 in
• Maximum working load 907 kg | 2000 lb
• Breaking load 1814 kg | 4000 lb
