Ratchet Carbo Blocks
Carbo Ratchet Blocks allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.
Nylon resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Machined aluminum sheaves are hardcoat anodized for strength and corrosion resistance. Eight facets hold line securely. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.
57mm and 75mmm Carbo Ratchet Blocks
The 57 mm and 75 mm switchable ratchets provide precise on/off control with accessible, easy-to-operate on/off switches on both sides of the block.
For the ultimate system, mount a switchable ratchet in the cockpit and a boom-mounted Ratchamatic® directly above for double holding power in heavy air and a free-running mainsheet when it’s light. The 75 mm provides up to 15:1 holding power; the 57 mm 10:1.
- Main/jib/spinnaker sheets
- Mainsheet fine-tune
- Traveler controls
- Genoa leads
- Sheave Ø 57 mm | 2-1/4 in
- Length 143 mm | 5-5/8 in
- Weight 121 g | 4.3 oz
- Shackle pin Ø 5 mm | 3/16 in
- Maximum line Ø 10 mm | 3/8 in
- Maximum working load 360 kg | 793 lb
- Breaking load 1080 kg | 2380 lb

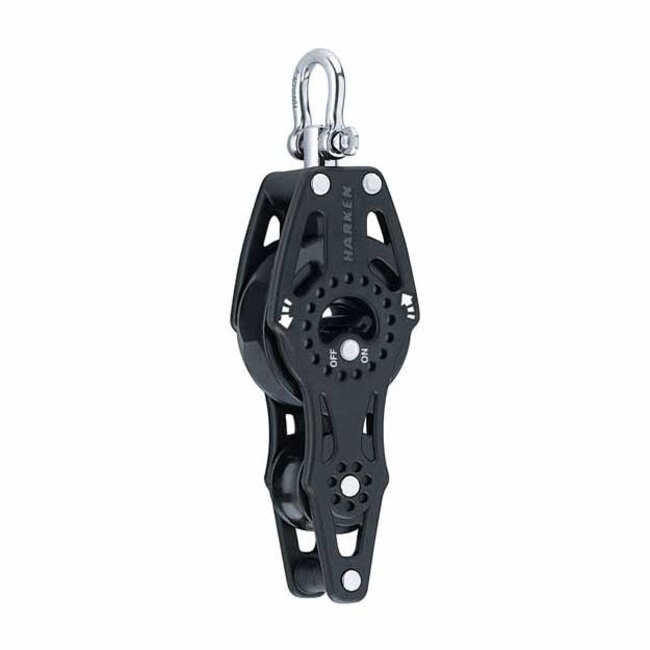

57mm Carbo Ratchet Fiddle Block with Becket and Swivel
