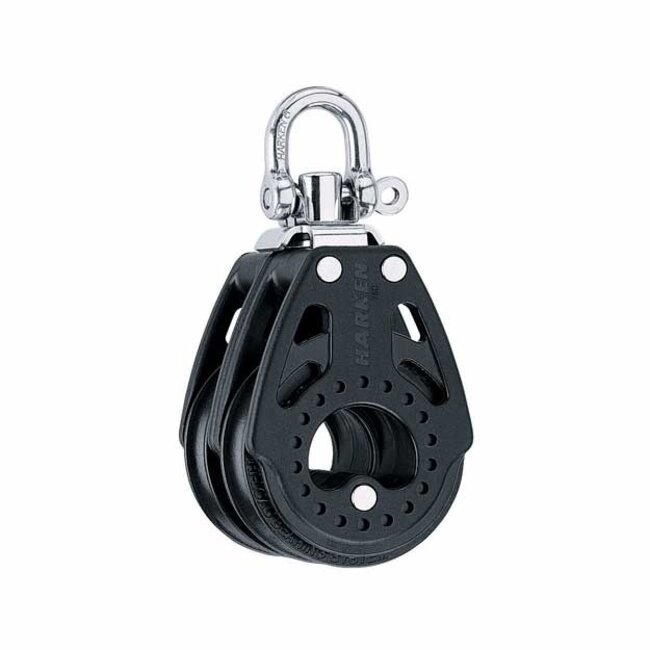

75mm Carbo Blocks

The 75 mm Carbo has a safe working load of 1200 lbs (500 kg). It releases easily under load and is perfect for mainsheet systems on sport boats like the Melges 24, J/105, and Henderson 30.

Blocks feature Cam-Lock or U-Lock locking systems to lock the shackle in front or side positions, or swivel to keep line from twisting.

Use for:

• Main/jib sheets
• Mainsheet fine-tune
• Control lines
• Vangs
• Cunninghams
• Outhauls

Specifications:

• Sheave Ø 75 mm | 2-15/16 in
• Length 152 mm | 6 in
• Weight 402 g | 14.2 oz
• Shackle pin Ø 8 mm | 5/16 in
• Maximum line Ø 14 mm | 9/16 in
• Maximum working load 1100 kg | 2426 lb
• Breaking load 2722 kg | 6000 lb
