    75mm Carbo Fiddle Block with Swivel

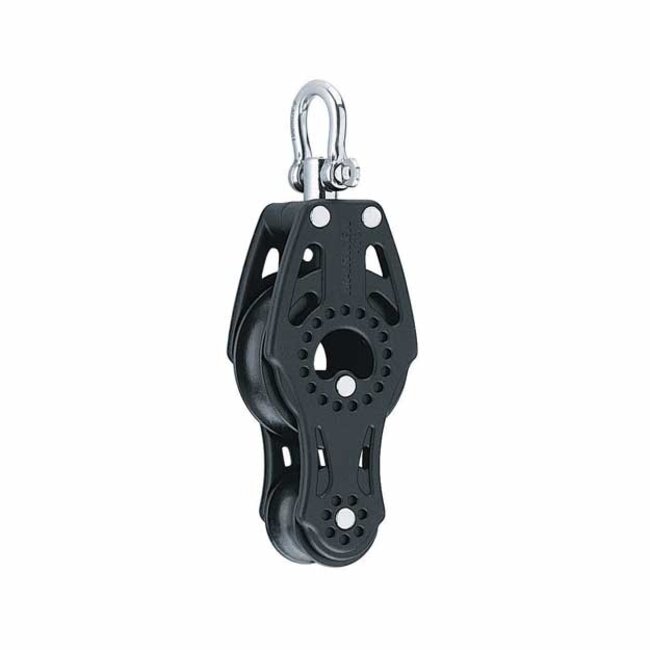

    Harken 75mm Carbo Fiddle Block with Swivel


    Product description

    Harken 75mm Carbo Fiddle Block with Swivel

    40mm Carbo Fiddle Blocks

    Carbo fiddle line features high-load ball bearings with fitted races for low-friction operation.

    The 40 mm fiddle is an excellent choice for 3:1 and 4:1 tackles on dinghy vangs and mainsheets, as well as for controls such as cunninghams and internal boom outhauls on larger boats


    The 57 mm fiddle features the Cam-Lock locking system. The patented switch allows the jaw to lock at 90-degree intervals, or to swivel freely.


    The 57 mm and 75 mm switchable ratchets provide precise on/off control with accessible, easy-to-operate on/off switches on both sides of the block.

    Use for:

    • Vangs
    • Cunninghams
    • Outhauls
    • Mainsheet fine-tune


    • Sheave Ø 75 mm
    • Sheave Ø 2 15/16 in
    • Length 157 mm
    • Length 6-3/16 in
    • Weight 238 g
    • Weight 8.4 oz
    • Shackle pin Ø 6 mm
    • Shackle pin Ø 1/4 in
    • Maximum line Ø 14 mm
    • Maximum line Ø 9/16 in
    • Maximum working load 550 kg
    • Maximum working load 1212 lb
    • Breaking load 1650 kg
    • Breaking load 3637 lb
