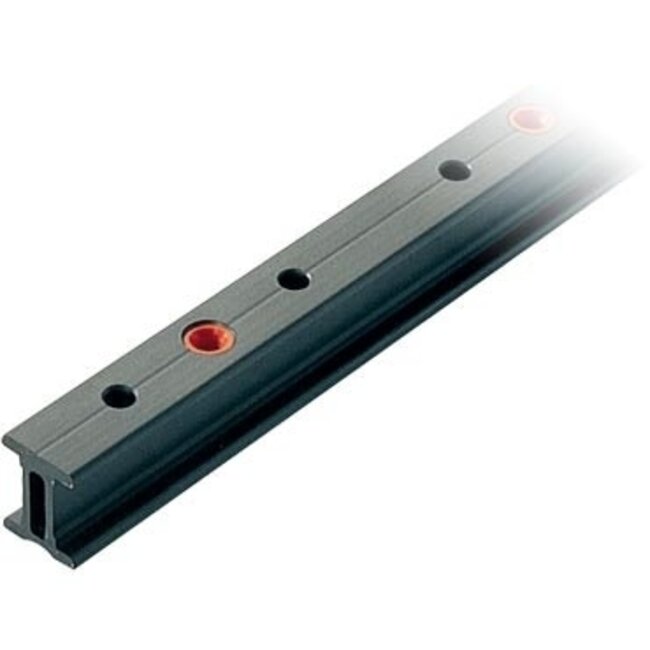

I-Beam Track 3/4 19mm Black 2.0m

TRACK FASTENINGS

• To suit 5mm (3/16") countersunk fasteners at 100mm (3 15/16") centres.

STOP HOLES

• 50mm (1 31/32") centres.
• Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners

MINIMUM CURVE RADIUS

• For 51mm (2") car . Min horizontal 'A' curve radius = 400mm (15 3/4"). Min horizontal 'B' curve radius = 400mm (15 3/4").
• For 86mm (3 3/8") car . Min horizontal 'A' curve radius = 1200mm (47 1/4"). Min horizontal 'B' curve radius = not suitable.
• For 105mm (4 3/16") car . Min horizontal 'A' curve radius = 400mm (15 3/4"). Min horizontal 'B' curve radius = not suitable.
