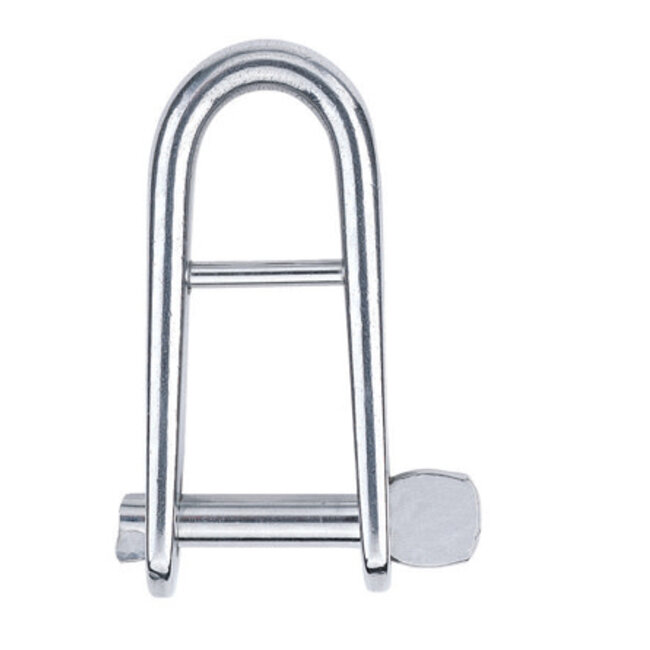

5 mm Captive Halyard Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. These shackles have a secondary pin to keep the shackle permanently secured to the halyard and in the correct orientation.

Specifications:

• Shackle pin Ø: 5 mm | 3/16 in
• Weight: 32 g | 1.12 oz
• A: 35 mm | 1 3/8 in
• B: 14 mm | 9/16 in
• C: 14 mm | 9/16 in
• Maximum working load: 540 kg | 1190 lb
• Breaking load: 1080 kg | 2380 lb
