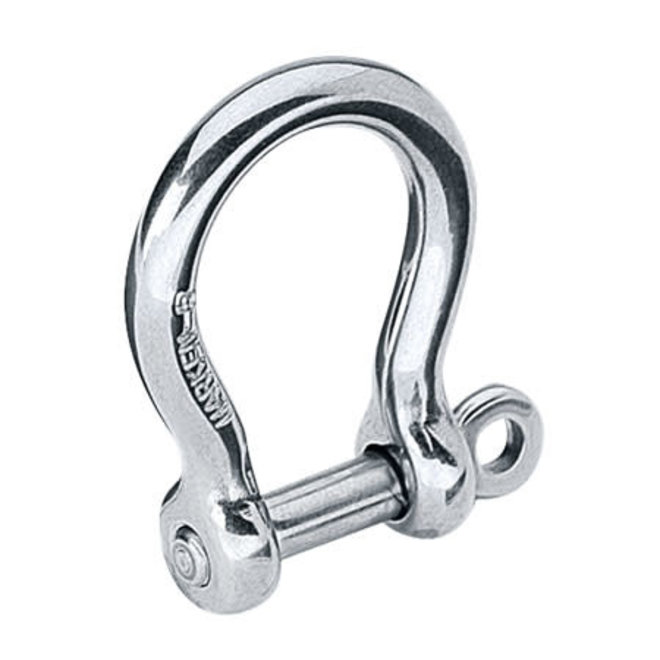

Harken Bow Shackle 5mm

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.

Specifications:

• Shackle pin Ø 5 mm | 3/16 in
• Weight 18 g | 0.64 oz
• A 25 mm | 1 in
• B 10 mm | 3/8 in
• C 17 mm | 11/16 in
• Maximum working load 540 kg | 1190 lb
• Breaking load 1080 kg | 2380 lb
