Over-the-Top Double Block

Product description

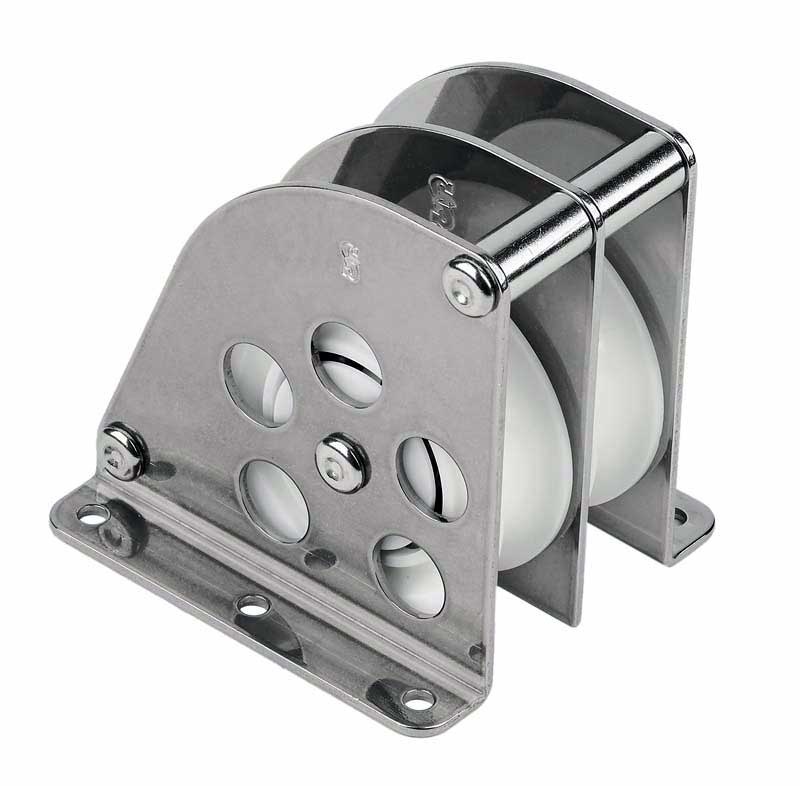

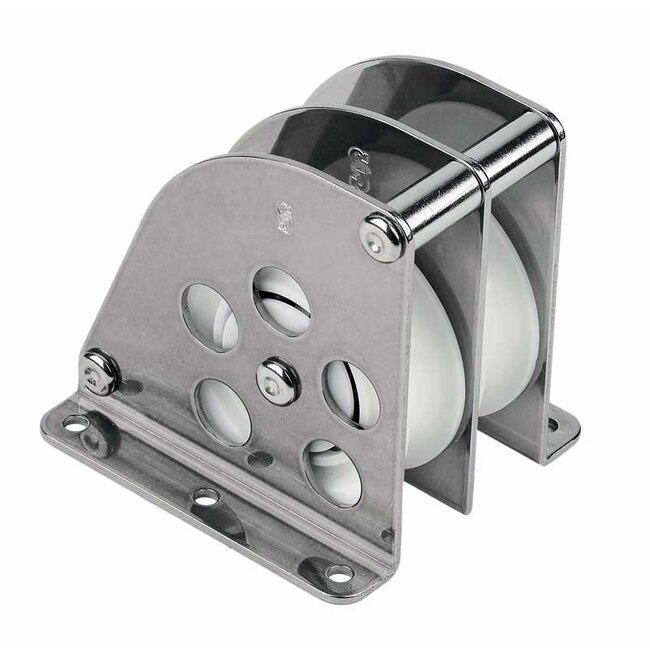

7 Series Double Over the Top Block. Stainless Steel cage and base provide a solid platform for clean leads. Delrin™ ball bearing sheaves ensure low-friction and high safe working loads.

• Sheave Ø: 2-3/8" | 60 mm
• Max Line Ø 1/2" | 13 mm
• Length 3-3/8" | 86 mm
• Width 3-5/32" | 80 mm
• Height 3-7/16" | 87 mm
• Bearing Height 2-5/16" | 58 mm
• Fasteners  #10 RH | M5
• Center to Center 2-13/16" | 72 mm
• SWL 1200 lbs. | 545 kg
• Weight 1 lb. 2 oz. | 510 g
