Product description

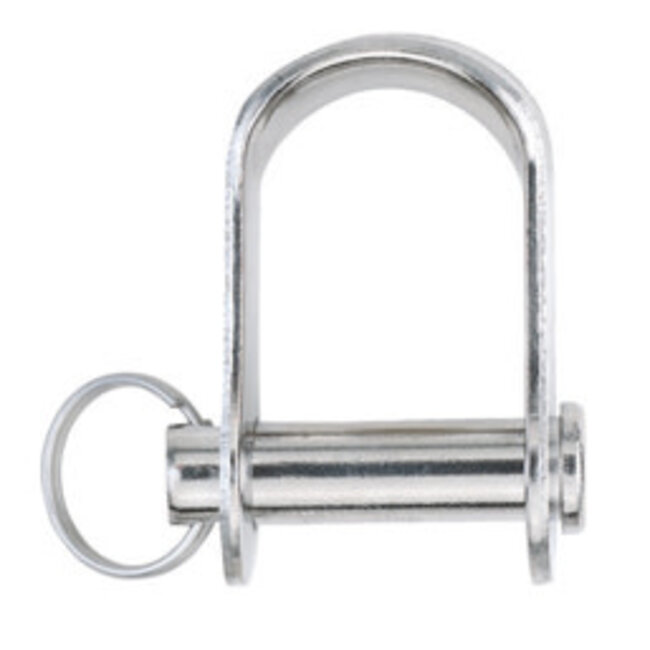

Harken Large Stamped Shackle

Stamped Shackles

The stamped stainless steel shackles we use on Harken® Small Boat Blocks are available separately for use in a variety of applications. The breaking strengths shown are derived from weights supported by 80% of the length of the shackle pin, similar to the length spanned by a block's headpost.

Stamped shackles are appropriate for low loads. For higher loads, select forged and forged high-resistance shackles instead.

Specifications:

• Shackle pin Ø 6 mm
• Shackle pin Ø 1/4 in
• Weight 15.5 g
• Weight 0.54 oz
• Inside Height 17 mm
• Inside Height 11/16 in
• Inside Opening 16 mm
• Inside Opening 5/8 in
• Maximum working load 680 kg
• Maximum working load 1500 lb
• Breaking load 1360 kg
• Breaking load 3000 l
