Product description

Self-Contained Sheaves

Self-contained sheaves are designed for sailors to use in custom applications.

The Micro, Bullet, and Big Bullet sheaves are Delrin® with Delrin® ball bearings. They are scored for rope. 16 mm AirBlock® sheaves are Delrin® and feature stainless ball bearings that ride in a grooved race. Midrange sheaves come in either Delrin® or aluminum for wire.

Wire sheaves are Hard Lube-anodized aluminum that ride on high-load composite bearings.

Ball bearings in the 1-1/2 in (38 mm) and 2 in (51 mm) sheaves minimize friction. The 1 in (25 mm) wire sheave uses low-friction washers for this purpose.

Two 160 sheaves make up the 161 dual-sheave universal lead. Use this sheave to divert a line that must turn in either direction.

Use Cruising ESP sheaves to handle high static loads from halyards and reef lines. Sheaves are carbon-black Delrin® for UV protection and turn on stainless steel spacers. Contained sideload ball bearings allow sheaves to spin freely when loads are released. Sheaves require a sideplate for the sideload balls to roll on.

Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.

Specifications:

Sheave Ø 29 mm | 1-1/8 in
Width 12 mm | 1/2 in
Weight 7 g | 0.25 oz
Center pin Ø 6.27 mm | 1/4 in
Maximum line Ø 8 mm | 5/16 in
Maximum working load 136 kg | 300 lb

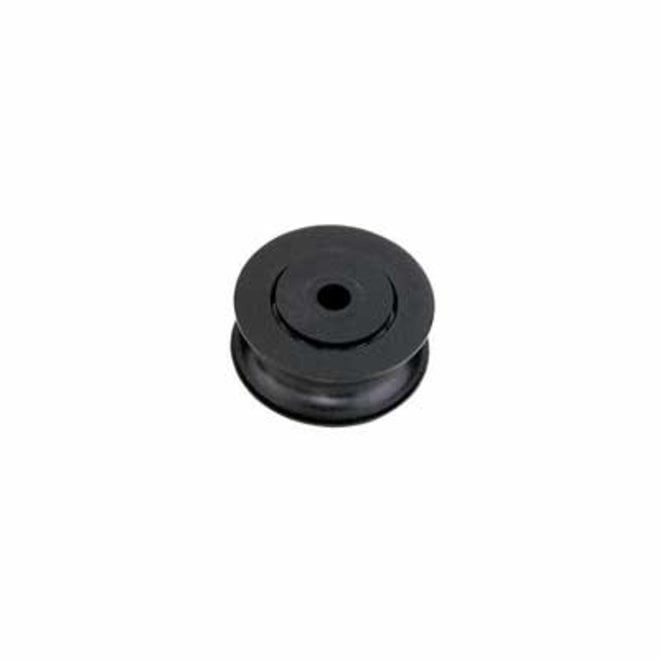

Sheave Harken Bullet D 29mm W 12mm Bore 1/4in
