Product description
Self-Contained Sheaves
Self-contained sheaves are designed for sailors to use in custom applications.
The Micro, Bullet, and Big Bullet sheaves are Delrin® with Delrin® ball bearings. They are scored for rope. 16 mm AirBlock® sheaves are Delrin® and feature stainless ball bearings that ride in a grooved race. Midrange sheaves come in either Delrin® or aluminum for wire.

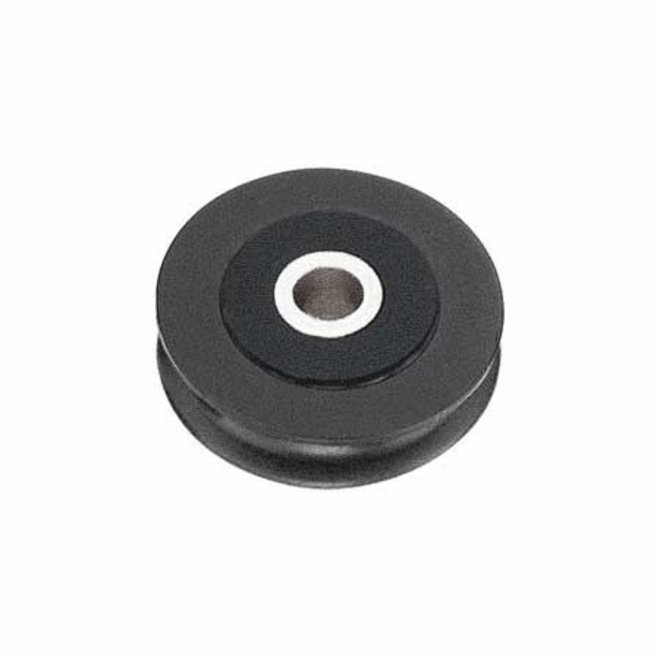

Wire sheaves are Hard Lube-anodized aluminum that ride on high-load composite bearings.
Ball bearings in the 1-1/2 in (38 mm) and 2 in (51 mm) sheaves minimize friction. The 1 in (25 mm) wire sheave uses low-friction washers for this purpose.
Two 160 sheaves make up the 161 dual-sheave universal lead. Use this sheave to divert a line that must turn in either direction.
Use Cruising ESP sheaves to handle high static loads from halyards and reef lines. Sheaves are carbon-black Delrin® for UV protection and turn on stainless steel spacers. Contained sideload ball bearings allow sheaves to spin freely when loads are released. Sheaves require a sideplate for the sideload balls to roll on.
Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Specifications:
- Sheave Ø 25 mm | 1 in
- Width 7 mm | 9/32 in
- Weight 7 g | 0.25 oz
- Center pin Ø 4.75 mm | 3/16 in
- Maximum line Ø 4 mm | 5/32 in
- Maximum wire Ø 2 mm | 3/32 in
- Maximum working load 454 kg | 1000 lb
