Product description

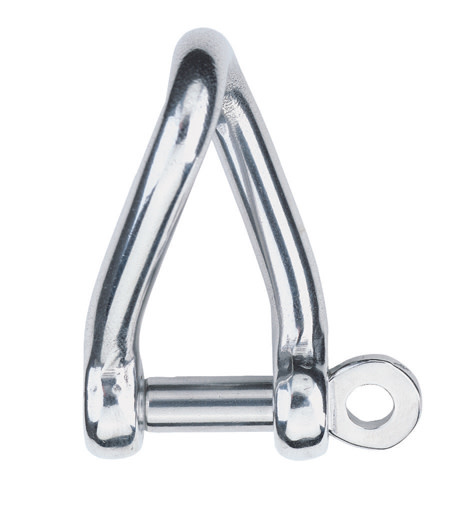

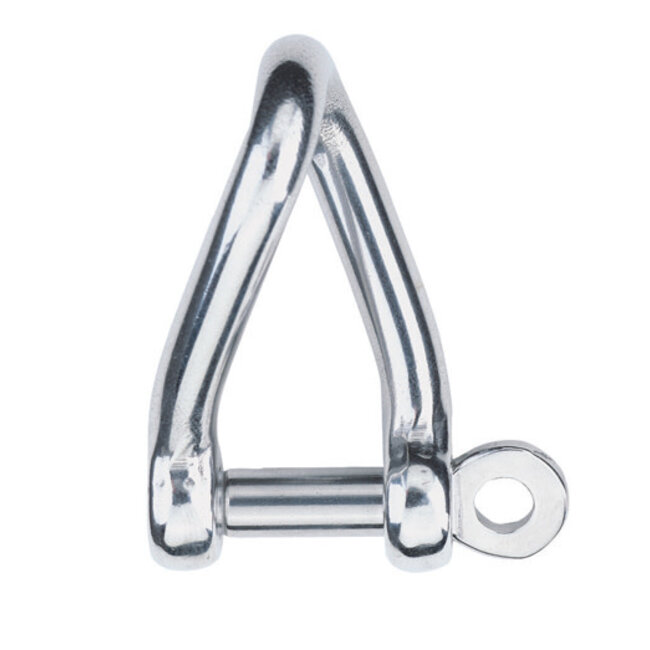

Harken 6mm Forged Twist Shackle

Forged Shackles

The stainless steel shackles we use on Harken® blocks are available separately. Harken forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. The breaking strengths shown are derived from weights supported by 80% of the length of the shackle pin, similar to the length spanned by an appropriate block's headpost.

Twist Shackles

Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.

Specifications:

• Shackle pin Ø 6 mm
• Shackle pin Ø 1/4 in
• Weight 32 g
• Weight 1.12 oz
• Inside Height 29 mm
• Inside Height 1-1/8 in
• Inside Width 12 mm
• Inside width 1/2 in
• Maximum working load 750 kg
• Maximum working load 1650 lb
• Breaking load 1500 kg
• Breaking load 3300 lb
