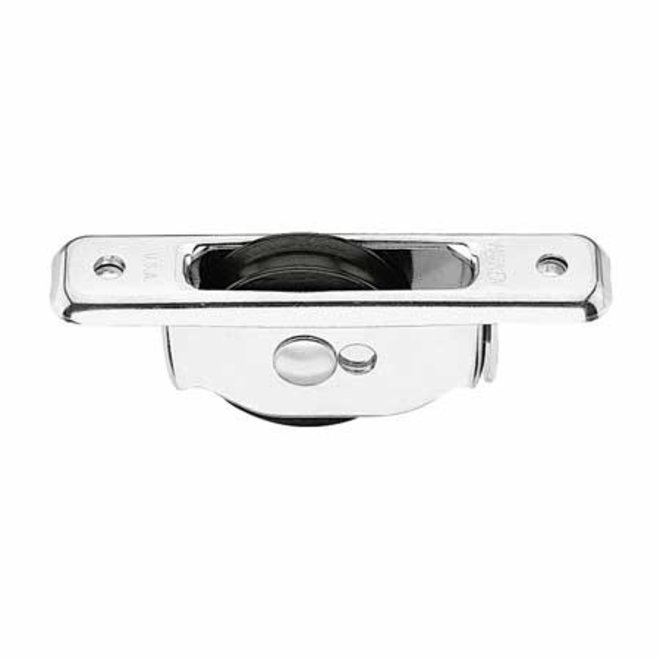

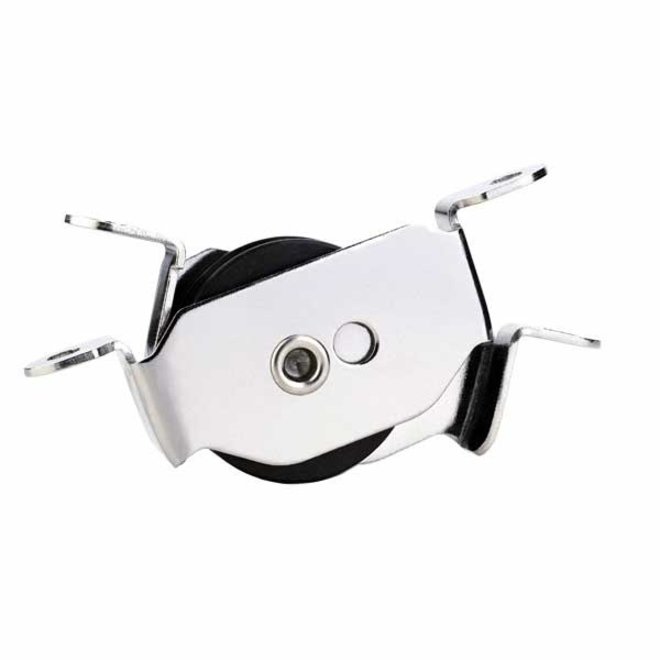

Wire Thru-Deck 1-1/2" Sheave

Product description

Wire High-Strength Blocks

Lightweight, low-friction wire blocks carry wire halyards and high-strength control lines on boats of all sizes.

High-load composite bearings carry axial loads. Hard Lube-anodized with PTFE impregnation sheave for strength and corrosion resistance.

25 mm (1.00 in) wire blocks use low-friction thrust washers. 38 mm (1.50 in) and 51 mm (2.00 in) wire blocks feature sideload balls between the sheave and the sideplate to minimize friction from unfair leads.

Specifications:

• Sheave Ø 38 mm | 1-1/2 in
• Weight 92 g | 3.25 oz
• Maximum wire Ø 3 mm | 1/8 in
• Maximum line Ø 5 mm | 3/16 in
• Fasteners M5 RH | #10 RH
• Mounting hole spacing 75 mm | 2-15/16 in
• Cutout 13 x 59 mm | 17/32 x 2 5/16 in
• Maximum working load 680 kg | 1500 lb
• Breaking load 1361 kg | 3000 lb
